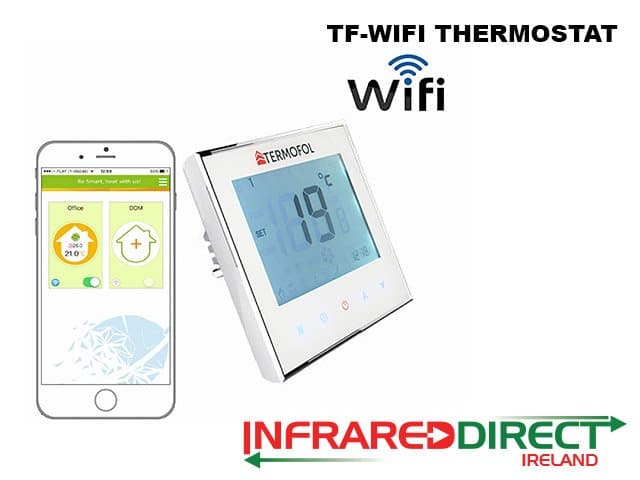

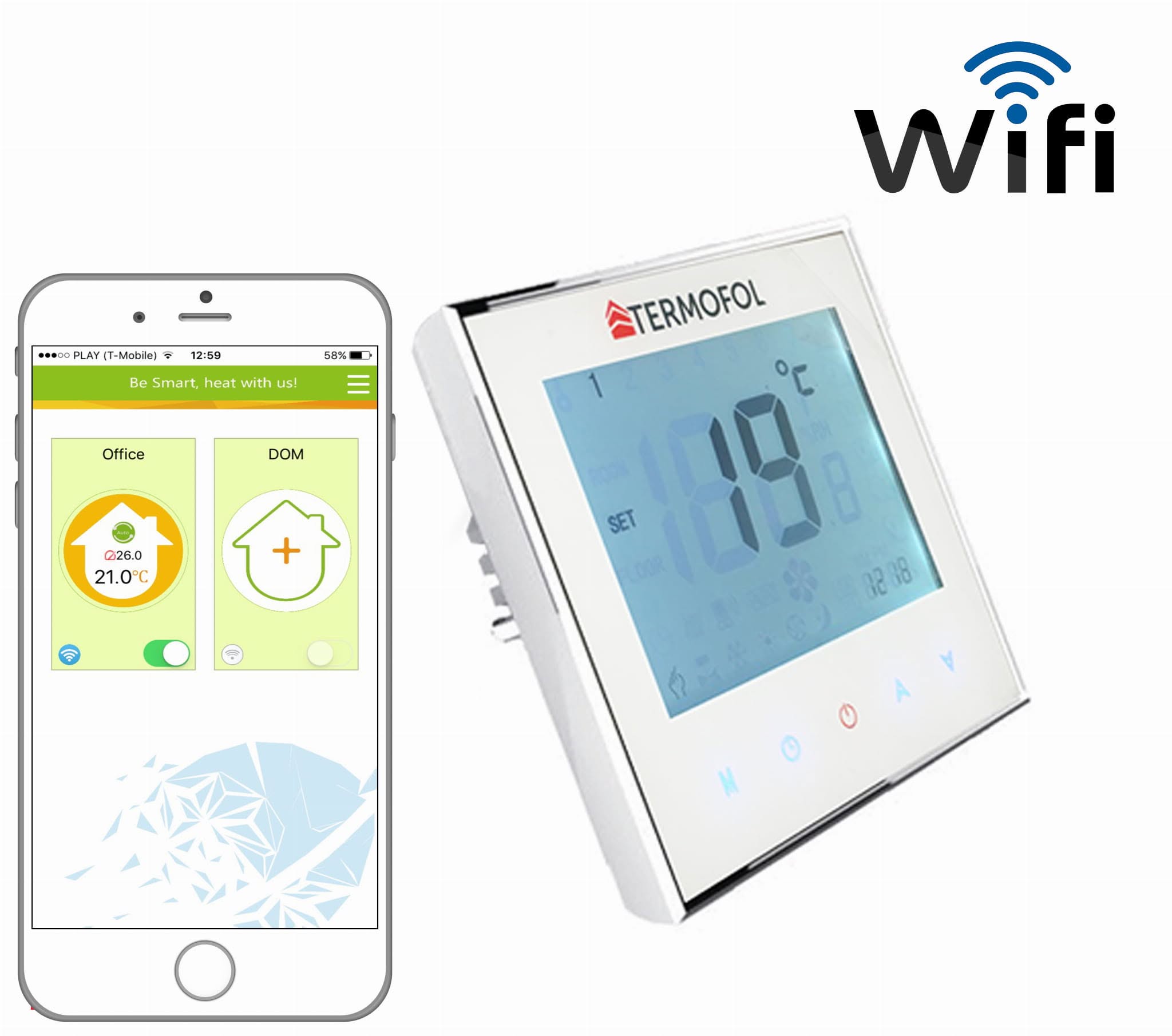

A revolution in heating … TERMOFOL-WIFI
A high-class, flush-mounted, fully programmable thermo regulator, with the possibility of remote control of the heating system using a SMART PHONE. It is equipped with a digital display and a touch control panel. The blue backlight is extremely legible, even for people with visual impairments.
The heating system is controlled based on the measurement of the air temperature in the room. The thermo regulator enables a control mode that takes into account both the room temperature and the floor temperature – in this case, the controller activates the heating system in order to obtain the set temperature in the room. precise temperature control from anywhere.

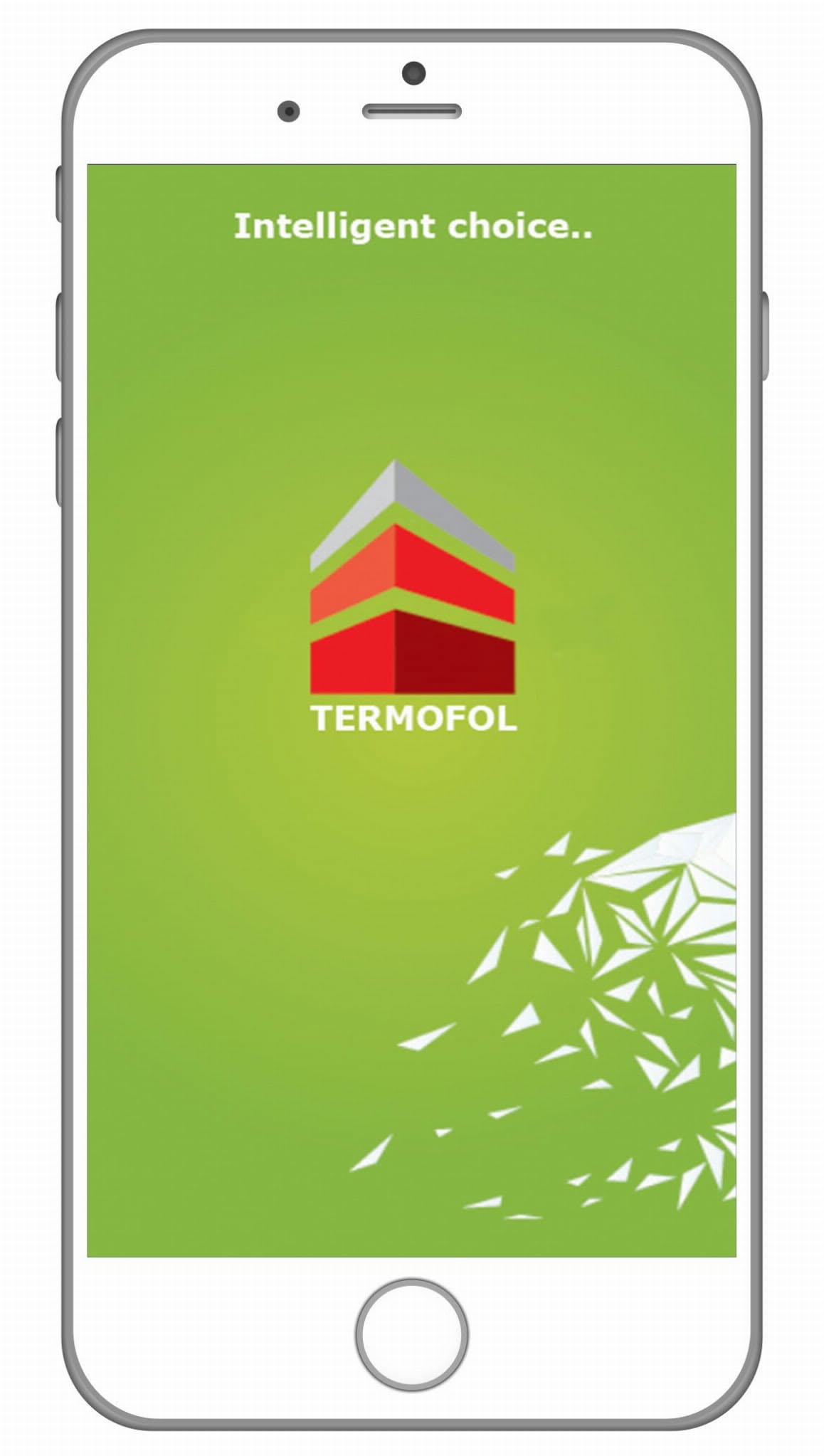

The TERMOFOL_wifi application is available for IOS / ANDROID phones !

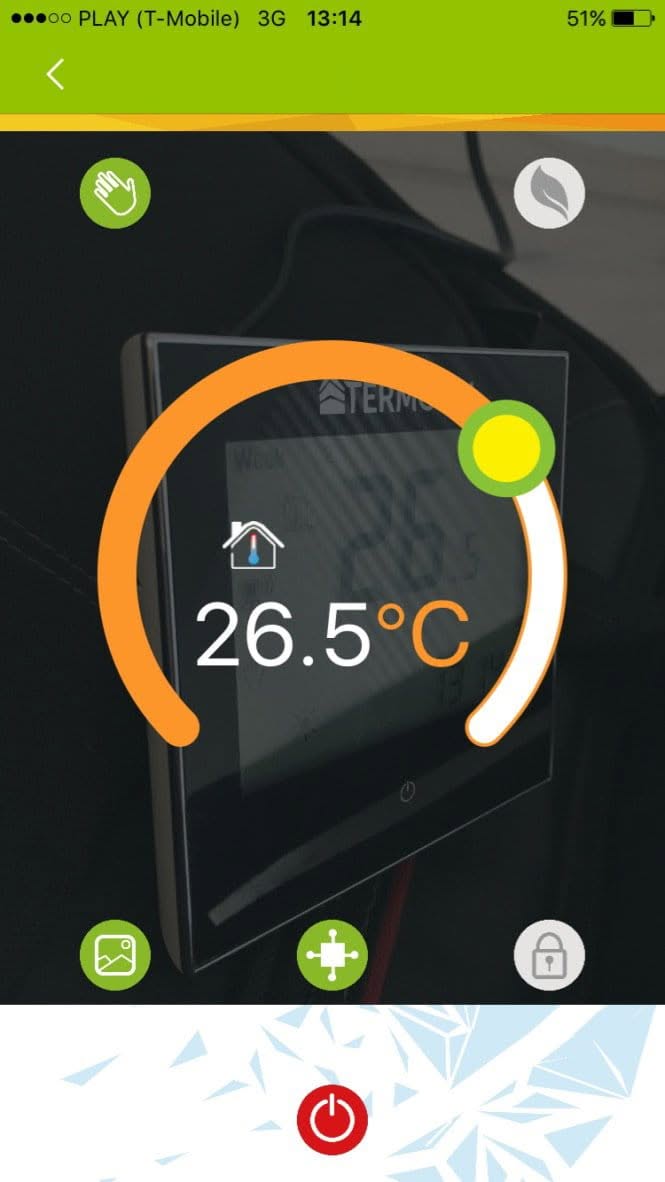

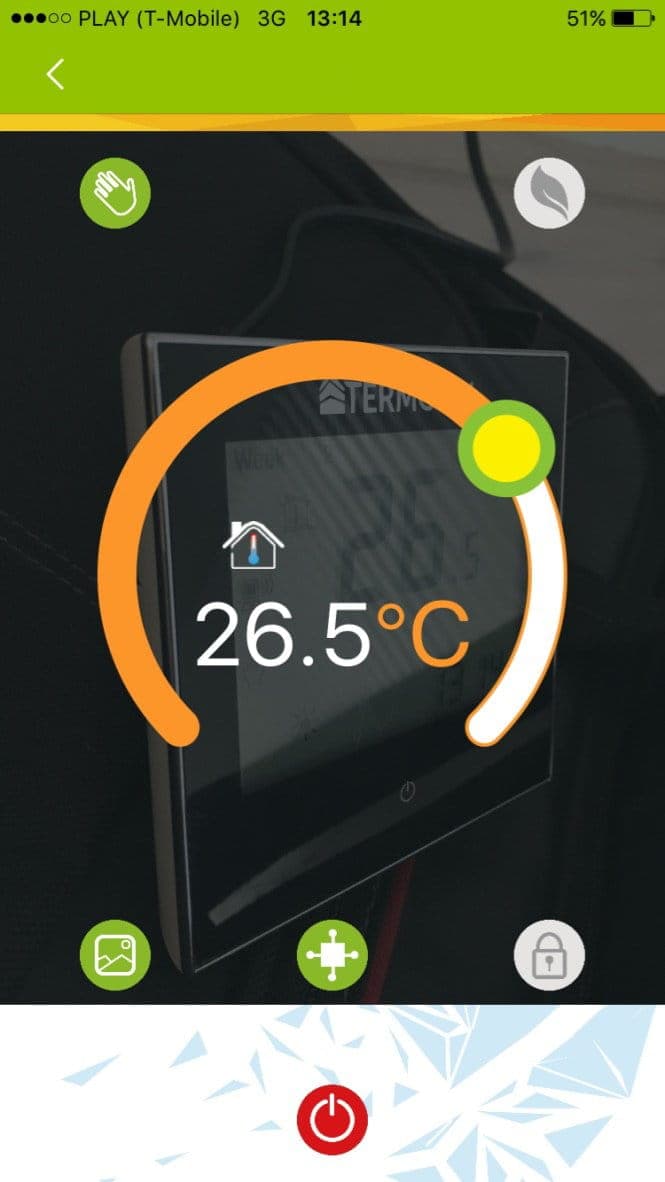

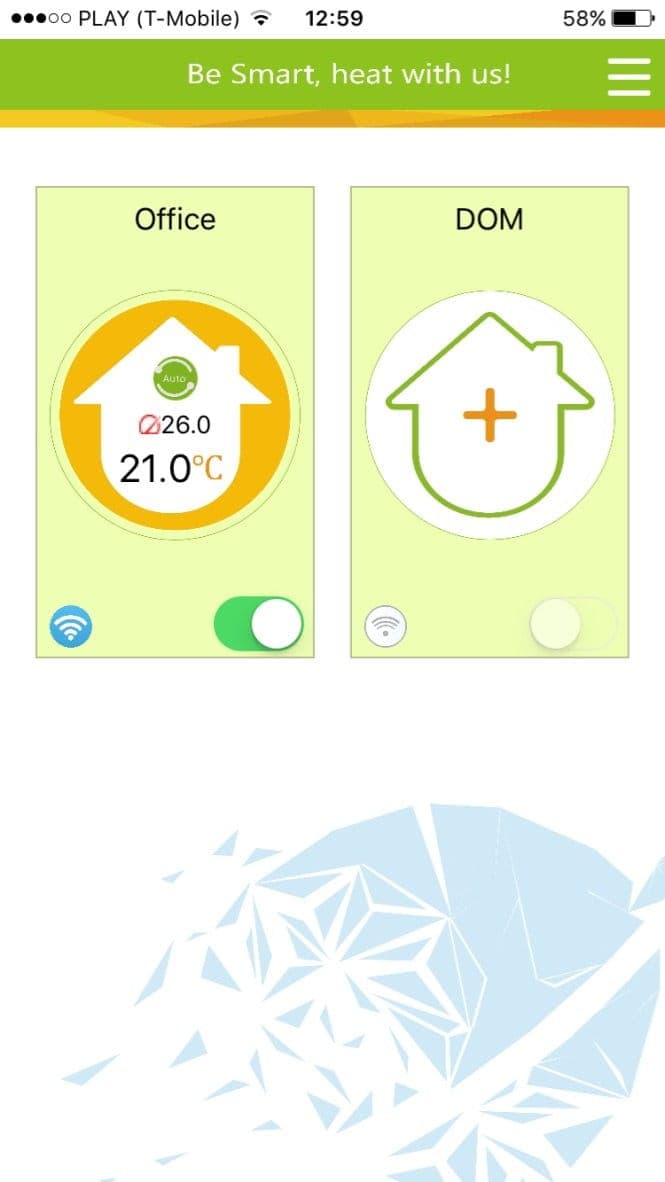

In order to be able to remotely control the heating system using a smartphone, the TF-WIFI controller must be connected via WiFi to a router with access to the network. However, the TERMOFOL_wifi application must be installed on the phone. It is possible to control any number of thermostats from one phone, as well as to control one thermostat from several phones / tablets.
Thermoregulator operation modes:
- ROOM – the internal sensor controls the temperature in the room. The mode is used when the thermostat is to control a heating system .
Characteristics:
- Touch buttons control
- Temperature programming 5 + 2
- Mounting method: flush-mounted – in the installation box
- Warranty: 24 months
- Slim shape – only 12mm thick!
- Black front panel
- Blue backlight with the option to set the backlight time
- Signaling – heating is on
- Manual temperature control possible
- It enables protection against both a drop and an increase in temperature
- Hysteresis can be adjusted
- Displays the date and time
- Outdoor sensor
Technical Specifications:
- Power consumption: <1.5 W
- Temperature range: 5 – 35 ° C
- Limitation of the maximum temperature of the heater
- 2 sensors: built-in air temperature sensor
- Maximum load on the output: 16A
- Protective housing: IP20
- Power supply: 230 AC

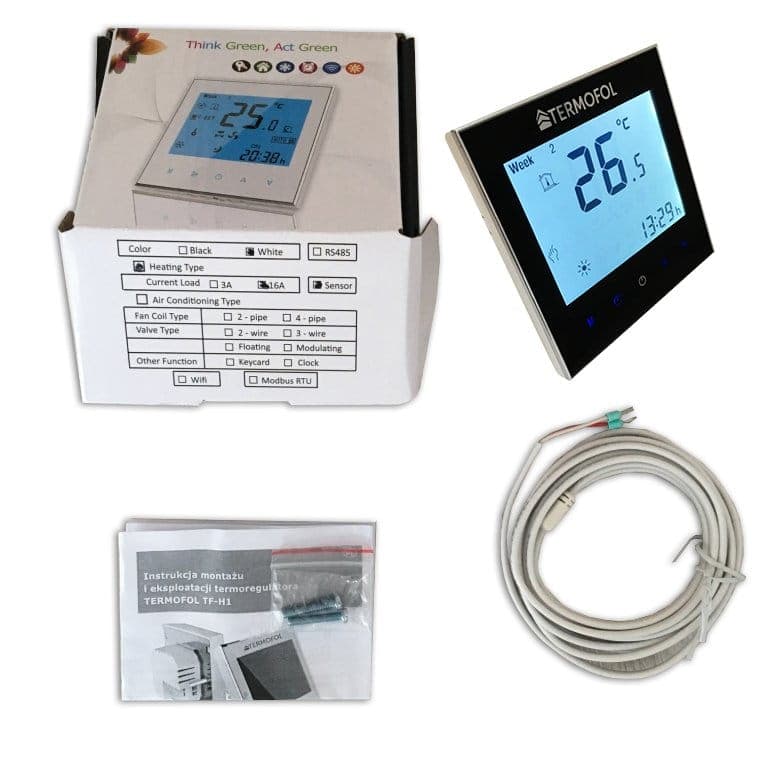

Set contains:
- Thermoregulator with built-in temperature sensor
- External temperature sensor – floor with a cable
- Box
- Mounting screws
- Instruction PL
DOWNLOAD THE TERMOFOL APP FROM THE APP STORE.
